Precision Compasses - J 443 Series


Precision Compass

  • Brass bow compass with gear head in nickle plated & satin finish
  • Quick action adjustment
  • Hinged lead and needle legs
  • Interchangeable lead part with universal adapter or extension bar
  • Max circle diameter : 320 mm, with extension bar : 600 mm Approx.

Line



Precision Compass

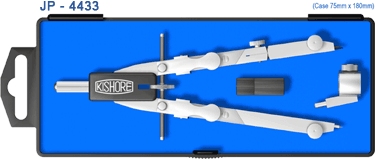

JP - 4433
(Case 75 mm x 180 mm)
  • K 443 Gear Head Bow Compass (MCD : 320 mm Approx.), Hinged Lead & Needle Legs, Quick Action Adjustment
  • With Universal Adapter 4Ø
  • Lead Box 2 mm

JP 4433
Pcs. Qty.
L x W x H, mm
gr. wt. JGs.
cu. mtr. CBM
120
520 x 430 x 280
26.95
0.0626
10
210 x 170 x 130
2.25
0.0046


Line



Precision Compass

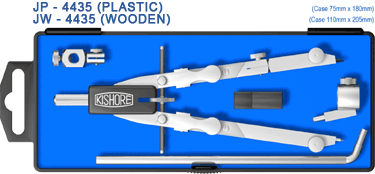

JP - 4435 (Plastic)
(Case 75 mm x 180 mm)
JW - 4435 (Wooden)
(Case 110 mm x 205 mm)
  • K 443 Gear Head Bow Compass (MCD : 320 mm Approx.), Hinged Lead & Needle Legs, Quick Action Adjustment
  • With Universal Adapter 4Ø
  • Extension Bar 4Ø (MCD : 600 mm Approx.)
  • Adapter
  • Lead Box 2 mm

JP 4435
Pcs. Qty.
L x W x H, mm
gr. wt. JGs.
cu. mtr. CBM
120
520 x 430 x 280
31.71
0.0626
10
210 x 170 x 130
2.65
0.0046


JW 4435
Pcs. Qty.
L x W x H, mm
gr. wt. JGs.
cu. mtr. CBM
40
492 x 444 x 380
29.68
0.0830
10
241 x 217 x 180
3.53
0.0094
